Installation elements
Installation elements

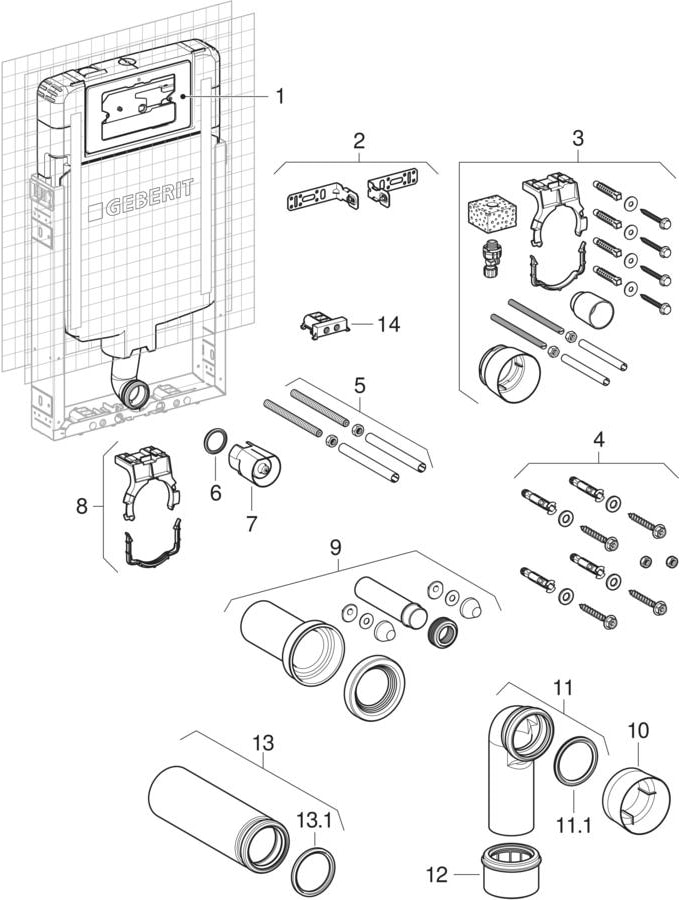

| # | Art. no. | Description | Replacement for | Remarks |
|---|---|---|---|---|
| 1 | Go to the spare parts page: Alpha concealed cisterns 12 cm (from year of construction 2023) | |||
| 2 | 216.179.00.1 | Geberit fastening material | ||
| 3 | 240.189.00.1 | Geberit set of threaded rods M12 (2 pc.): M=12mm | ||
18 Articles
| # | Art. no. | Description | Replacement for | Remarks |
|---|---|---|---|---|
| 1 | Go to the spare parts page: Alpha concealed cisterns 12 cm | |||
| 2 | 216.179.00.1 | Geberit fastening material | ||
| 3 | 240.189.00.1 | Geberit set of threaded rods M12 (2 pc.): M=12mm | ||
17 Articles
| # | Art. no. | Description | Replacement for | Remarks |
|---|---|---|---|---|
| 1 | Go to the spare parts page: Alpha concealed cisterns 8 cm | |||
| 2 | 243.346.00.1 | Geberit set of fixing brackets 8 / 12 cm (2 pc.) | ||
| 3 | 242.419.00.1 | Installation accessories for Geberit Kombifix element for wall-hung WC, with Sigma concealed cistern 8 cm | ||
18 Articles
| # | Art. no. | Description | Replacement for | Remarks |
|---|---|---|---|---|
| 1 | Go to the spare parts page: Omega concealed cisterns 12 cm | |||
| 2 | 156.050.00.1 | Geberit sound insulation set for wall-hung WC | ||
| 3 | 240.189.00.1 | Geberit set of threaded rods M12 (2 pc.): M=12mm | ||
19 Articles
Alpha concealed cisterns 11 cm
2012 - 2023
| # | Art. no. | Description | Replacement for |
|---|---|---|---|
| 1 | 240.705.00.5 | Geberit type 383 fill valve for concealed cisterns | 240.705.00.1 |
| 1 | Go to the spare parts page: Fill valves type 380, lateral water supply connection | ||
| 1 | Go to the spare parts page: Fill valves Type 383, lateral water supply connection unit | ||
18 Articles
| # | Art. no. | Description | Replacement for | Remarks |
|---|---|---|---|---|
| 1 | Go to the spare parts page: Sigma concealed cisterns 8 cm, front actuation (UP720) | |||
| 1 | Go to the spare parts page: Sigma concealed cisterns 8 cm (from year of manufacture 2016) | |||
| 2 | 242.419.00.1 | Installation accessories for Geberit Kombifix element for wall-hung WC, with Sigma concealed cistern 8 cm | ||
22 Articles
Delta concealed cisterns 8 cm (UP172)
2009 - 2016
| # | Art. no. | Description | Replacement for | Remarks |
|---|---|---|---|---|
| 1 | 241.475.00.1 | Geberit angle stop valve for Delta concealed cisterns 8/12 cm: G=1/2″ | ||
| 2 | 241.854.00.1 | Geberit type 380 reinforced hose, dezincification-resistant, for concealed cistern: G=3/8″, M=30mm | ||
| 2 | 240.921.00.1 | Geberit type 380 reinforced hose for concealed cistern: DN=8, L=33.3cm, G=3/8″ | ||
30 Articles
Delta concealed cisterns 12 cm (UP182)
2008 - 2016
| # | Art. no. | Description | Replacement for | Remarks |
|---|---|---|---|---|
| 1 | 241.475.00.1 | Geberit angle stop valve for Delta concealed cisterns 8/12 cm: G=1/2″ | ||
| 2 | 240.921.00.1 | Geberit type 380 reinforced hose for concealed cistern: DN=8, L=33.3cm, G=3/8″ | ||
| 2 | 241.854.00.1 | Geberit type 380 reinforced hose, dezincification-resistant, for concealed cistern: G=3/8″, M=30mm | ||
23 Articles
