Replaces art. no. 110.238.00.1

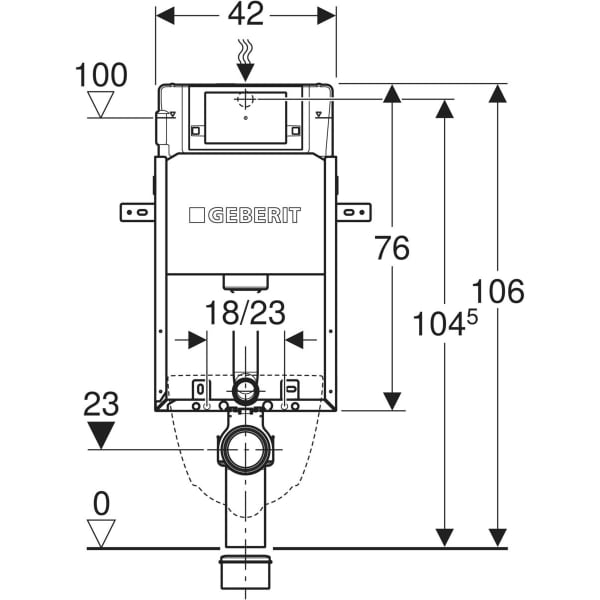

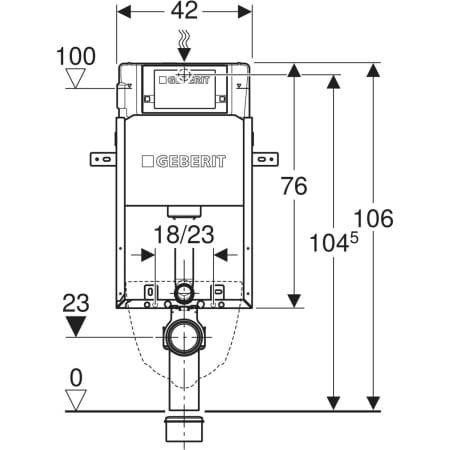

| Art. no. | 110.238.00.2 |
| B | 42 cm |
| H | 106 cm |
Geberit Kombifix element for wall-hung WC, 106 cm, with Alpha concealed cistern 12 cm
My list (0)
Technical data
Flow pressure 0.1–10 bar |
Water temperature max. 25 °C |
Flush volume, factory setting 6 / 3 l |
Full flush volume, adjustment range 4 / 4.5 / 6 / 7.5 l |
Flush volume small, adjustment range 2–4 l |
Product material Steel |
Height-adjustable No |
Flow pressure 0.1–10 bar |
Water temperature max. 25 °C |
Flush volume, factory setting 6 / 3 l |
Full flush volume, adjustment range 4 / 4.5 / 6 / 7.5 l |
Flush volume small, adjustment range 2–4 l |
Product material Steel |
Height-adjustable No |
Application purposes
Click on an application purpose to search more products
Characteristics
Click on a characteristic to search more products

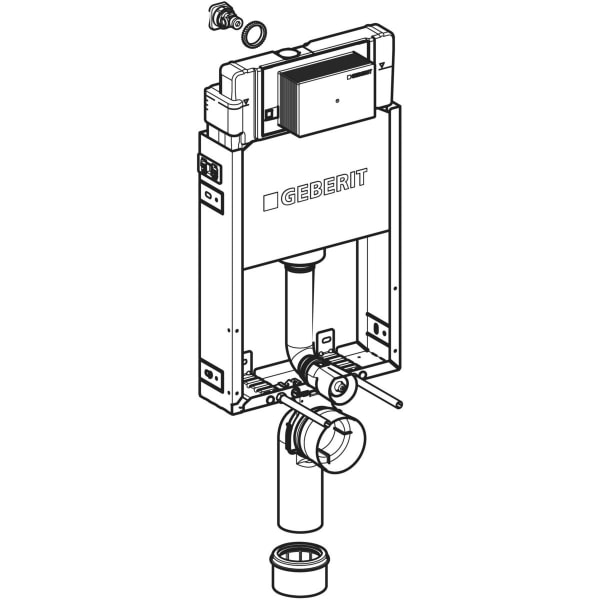

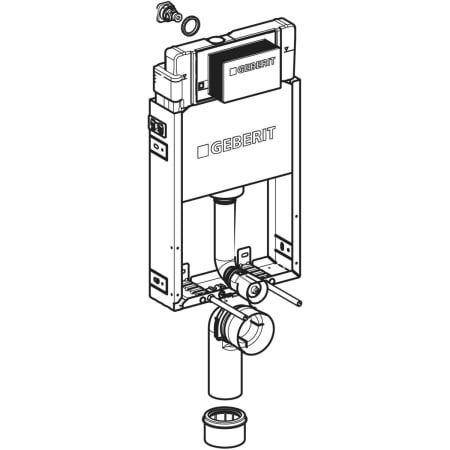

Scope of delivery
Water supply connection unit R 1/2", compatible with MasterFix and MeplaFix, with integrated angle stop valve and adapter ring
Protection box for service opening
Connection set for WC, ø 90 mm
Connection bend made of PE-HD, ø 90 mm
Adapter socket made of PE-HD, ø 90 / 110 mm
2 protection plugs
2 threaded rods M12
Fastening material
Accessories
Accessory overviews
Documents
| Document type | Documents | Language | |
|---|---|---|---|
Declaration of performance | DoP14 Cistern | EN and 30 others | |
Installation instructions | Connection set for wall-hung WC | - | |
Installation instructions | Geberit Kombifix Alpha WC 12 cm height 106 | - | |
Maintenance manual | Alpha 12 cm concealed cistern | - |
DoP14 Cistern
EN and 30 others
Connection set for wall-hung WC
Geberit Kombifix Alpha WC 12 cm height 106
Alpha 12 cm concealed cistern
Films
Other products
Spare parts
| # | Art. no. | Description | Replacement for | Remarks |
|---|---|---|---|---|
| 1 | Go to the spare parts page: Alpha concealed cisterns 12 cm | |||
| 2 | 216.179.00.1 | Geberit fastening material | ||
| 3 | 240.189.00.1 | Geberit set of threaded rods M12 (2 pc.): M=12mm | ||
17 Articles
| # | Art. no. | Description | Replacement for | Remarks |
|---|---|---|---|---|
| 1 | Go to the spare parts page: Alpha concealed cisterns 12 cm (from year of construction 2023) | |||
| 2 | 216.179.00.1 | Geberit fastening material | ||
| 3 | 240.189.00.1 | Geberit set of threaded rods M12 (2 pc.): M=12mm | ||
18 Articles
