| Art. no. | 110.798.00.1 |
| B | 42 cm |
| H | 109 cm |

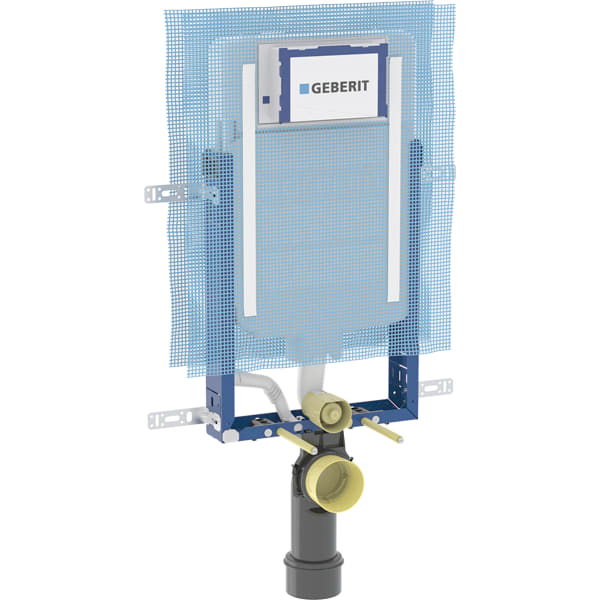

Geberit Kombifix element for wall-hung WC, 109 cm, with Sigma concealed cistern 8 cm
My list (0)
Technical data
Flow pressure 0.1–10 bar |
Water temperature max. 25 °C |
Flush volume, factory setting 6 / 3 l |
Flush volume large, adjustment range 4 / 4.5 / 6 / 7.5 l |
Flush volume small, adjustment range 2–4 l |
Product material Steel |
Height-adjustable No |
Flow pressure 0.1–10 bar |
Water temperature max. 25 °C |
Flush volume, factory setting 6 / 3 l |
Flush volume large, adjustment range 4 / 4.5 / 6 / 7.5 l |
Flush volume small, adjustment range 2–4 l |
Product material Steel |
Height-adjustable No |
Application purposes
Click on an application purpose to search more products
Characteristics
Click on a characteristic to search more products
Range 2016Powder-coated mounting frameMounting frame with four fastening bracketsPremounted direct plastering nettingFixing bracket coordinated with solid walls with 8 or 12 cm wall thicknessConnection bend can be mounted without toolsFastening for connection bend can be mounted without tools from frontConcealed cistern with front actuationConcealed cistern, fully insulated against condensation
Immediate post flush possible with factory settingTool-free installation and maintenance work on concealed cisternWater supply connection on the top leftWater supply connection, dezincification-resistantProtection cover box for service opening protects against moisture and dirtProtection box for service opening can be cut to length, suitable for surface-even actuator platesWith conduit pipe for feed pipe for Geberit AquaClean shower toilets and for connection cableFastening option for electrical connection
Scope of delivery
Water supply connection R 1/2", compatible with MasterFix and MeplaFix, with integrated angle stop valve and hand wheel
Protection box for service opening
4 fixing brackets
Connection set for WC, ø 90 mm
Connection bend 90° made of PE-HD, ø 90 mm
Adapter socket made of PE-HD, ø 90 / 110 mm
2 protection plugs
2 threaded rods M12
Fastening material
