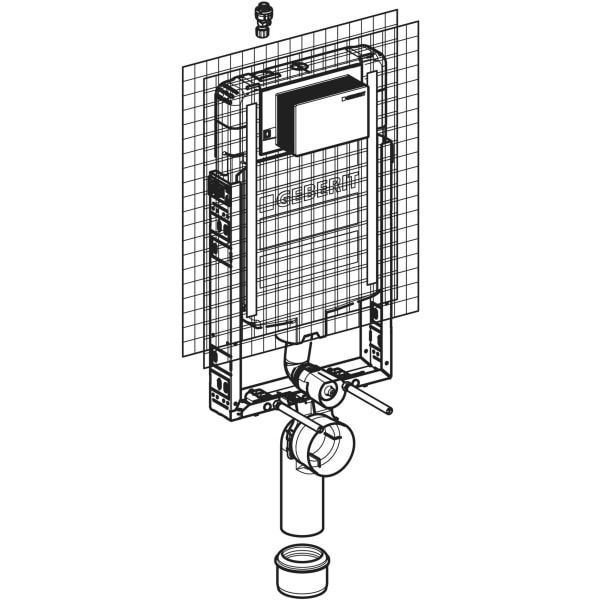

Geberit Kombifix element for wall-hung WC, 109 cm, with Alpha concealed cistern 8 cm
My list (0)
Technical data
Flow pressure 0.1–10 bar |
Flush volume, factory setting 6 / 3 l |
Flush volume large, adjustment range 4 / 4.5 / 6 / 7.5 l |
Flush volume small, adjustment range 2–4 l |
Product material Steel |
Height-adjustable No |
Application purposes
Click on an application purpose to search more products
Characteristics
Click on a characteristic to search more products
Zinc-plated mounting frameMounting frame with four fastening bracketsPremounted direct plastering nettingFixing bracket coordinated with solid walls with 8 or 12 cm wall thicknessConnection bend can be mounted without toolsFastening for connection bend can be mounted without tools from frontConcealed cistern with front actuation
Concealed cistern, fully insulated against condensationImmediate post flush possible with factory settingWater supply connection on the top leftWater supply connection, dezincification-resistantProtection cover box for service opening protects against moisture and dirtProtection box for service opening can be cut to length
Scope of delivery
Water supply connection R 1/2", compatible with MasterFix and MeplaFix, with integrated angle stop valve and hand wheel
Protection box for service opening
Connection set for WC, ø 90 mm
Connection bend made of PE-HD, ø 90 mm
Adapter socket made of PE-HD, ø 90 / 110 mm
2 protection plugs
2 threaded rods M12
Fastening material
Documents
Your input does not return any results
Films
Spare parts
Geberit Kombifix elements for wall-hung WC, with Alpha concealed cistern 8 cm
Geberit Kombifix elements for wall-hung WC, with Alpha concealed cistern 8 cm
2016 -
| # | Art. no. | Description |
|---|---|---|
| 1 | Go to the spare parts page: | |
| 2 | 243.346.00.1 | Geberit set of fixing brackets 8 / 12 cm (2 pc.) |
| 3 | 242.419.00.1 | Installation accessories for Geberit Kombifix element for wall-hung WC, with Sigma concealed cistern 8 cm |
