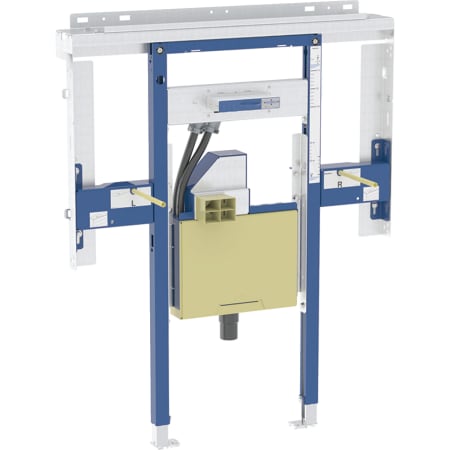

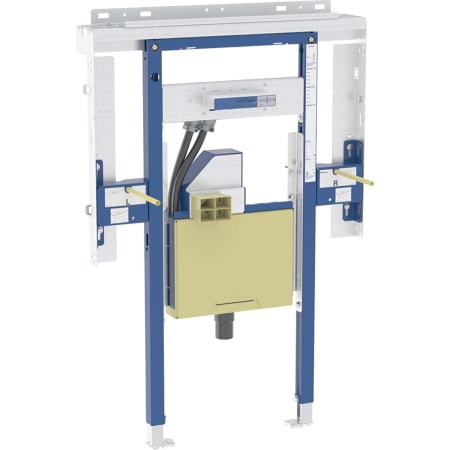

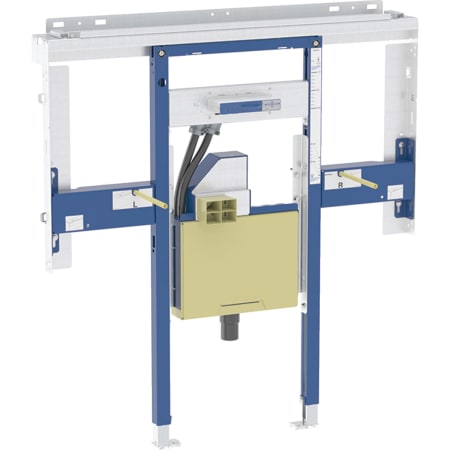

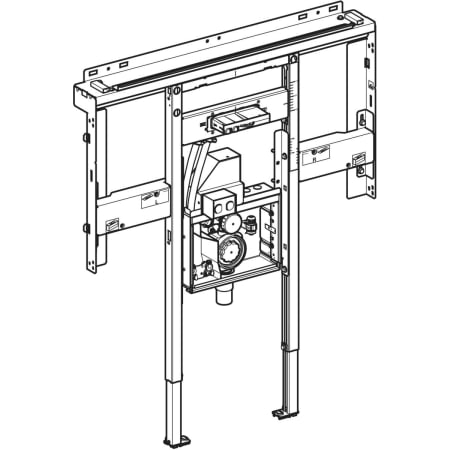

Geberit Duofix element for Geberit ONE washbasin, small projection and Geberit ONE wall-mounted tap, room-height, with concealed turn trap, with concealed Clou
My list (0)
Technical data
Product material Steel |
Height-adjustable Yes |
Application purposes
Click on an application purpose to search more products
Characteristics
Click on a characteristic to search more products
2025 rangeStatically self-supporting frame, protected against corrosion with powder coatingSuitable for Geberit ONERotating foot plates, suitable for installation in U profiles UW 50 and UW 75Foot plates that can be mounted in Geberit Duofix system rail without tools, without additional componentsGalvanised non-slip leg supports protected against corrosionTap crossbar height-adjustablePremounted fastening for wall-mounted tap
Concealed turn trap with service openingIn-wall cabinet with straight connector made of PE, ø 50 / 56 mmWater supply connection compatible with MasterFix and MeplaFixWater supply connection on the bottom of concealed housingConcealed housing for Geberit ONE washbasin tap, premountedPremounted connection pipes between concealed housing and fastening for wall-mounted tapShut-off unit integrated in the concealed housingOutlet mounting box in concealed housing
Scope of delivery
Crossbar for mirror cabinet
2 side fastenings
2 consoles
Protection covers
Female socket for mains connection
Fastening material
Documents
Your input does not return any results
Films
Spare parts
| # | Art. no. | Description | Remarks |
|---|---|---|---|
| 1 | 111.892.00.1 | Geberit Duofix hexagon head setscrew, self-cutting | Multipack |
| 2 | 244.129.00.1 | Geberit female socket for mains connection: Plug type=4-pole | |
| 3 | 244.178.00.1 | Sleeve for Geberit ONE washbasin connector: d=42mm, di=32mm | |
