Phasing out

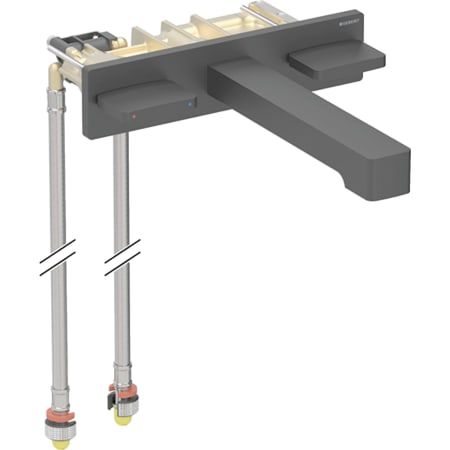

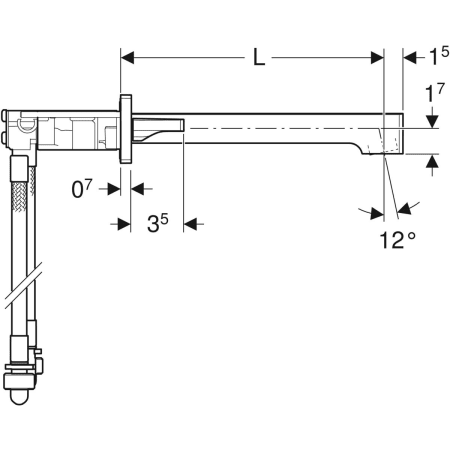

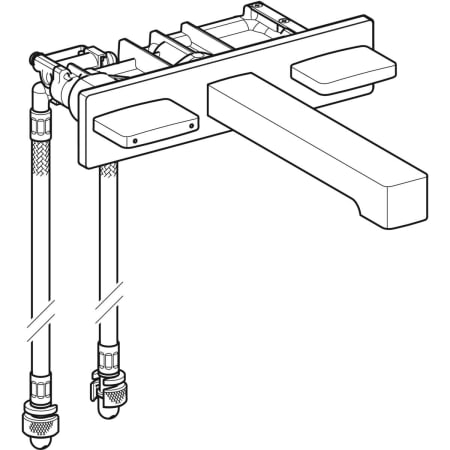

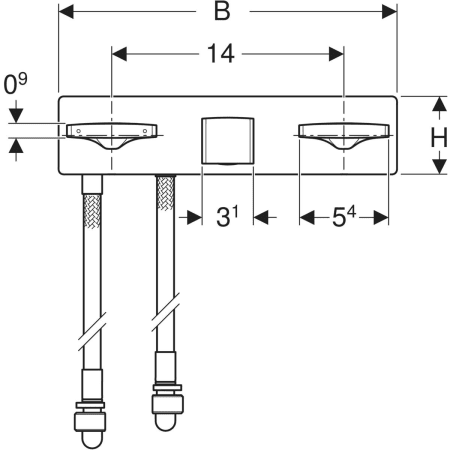

Geberit ONE washbasin tap, square design, wall-mounted, two-handle mixer, for Geberit ONE installation element and ONE washbasin, small projection

My list (0)

Articles

Click on the icon with the 3 dots to have more options for each item.

Phasing out

Art. no.	116.461.14.1
Colour / surface	black matt / easy-to-clean coated
Mixer	with mixer

Phasing out

Art. no.	116.461.21.1
Colour / surface	chrome / glossy
Mixer	with mixer

Technical data

Operating pressure	0.5–10 bar	Operating pressure 0.5–10 bar
Differentiated pressure CW/WW max.	1.5 bar	Differentiated pressure CW/WW max. 1.5 bar
Water test pressure max.	16 bar	Water test pressure max. 16 bar
Test pressure air / inert gas max.	3 bar	Test pressure air / inert gas max. 3 bar
Ambient temperature	1–40 °C	Ambient temperature 1–40 °C
Storage temperature	-20 – +70 °C	Storage temperature -20 – +70 °C

Water temperature max.	60 °C	Water temperature max. 60 °C
Water temperature short-term max.	90 °C	Water temperature short-term max. 90 °C
Flow rate at 300 kPa / 3 bar	5 l/min	Flow rate at 300 kPa / 3 bar 5 l/min
Minimum flow pressure	0.5 bar	Minimum flow pressure 0.5 bar
Calculated flow rate	0.07 l/s	Calculated flow rate 0.07 l/s
Product material	Brass / die-cast zinc	Product material Brass / die-cast zinc

Operating pressure	0.5–10 bar	Operating pressure 0.5–10 bar
Differentiated pressure CW/WW max.	1.5 bar	Differentiated pressure CW/WW max. 1.5 bar
Water test pressure max.	16 bar	Water test pressure max. 16 bar
Test pressure air / inert gas max.	3 bar	Test pressure air / inert gas max. 3 bar
Ambient temperature	1–40 °C	Ambient temperature 1–40 °C
Storage temperature	-20 – +70 °C	Storage temperature -20 – +70 °C
Water temperature max.	60 °C	Water temperature max. 60 °C
Water temperature short-term max.	90 °C	Water temperature short-term max. 90 °C
Flow rate at 300 kPa / 3 bar	5 l/min	Flow rate at 300 kPa / 3 bar 5 l/min
Minimum flow pressure	0.5 bar	Minimum flow pressure 0.5 bar
Calculated flow rate	0.07 l/s	Calculated flow rate 0.07 l/s
Product material	Brass / die-cast zinc	Product material Brass / die-cast zinc

Application purposes

Click on an application purpose to search more products

For extracting tap water For installation in Geberit installation elements for Geberit ONE washbasin and Geberit ONE wall-mounted tap For use with Geberit ONE washbasins with shortened projection For connecting cold and hot water

For panelling thickness 10–60 mm

Characteristics

Click on a characteristic to search more products

Tap group I in accordance with DIN 4109 Two-handle mixer Left turn handle for temperature setting, right turn handle for volumetric flow rate regulation Volume flow control via tap aerator

With integrated check valve With connection hoses, lenght 57 / 54 cm

Scope of delivery

Washbasin tap
Valve block with connection hoses
Fastening material

To order additionally

Geberit element for Geberit ONE washbasin, for Geberit ONE wall-mounted tap

Can be combined with

Geberit Duofix

Geberit Duofix element for Geberit ONE washbasin, small projection and Geberit ONE wall-mounted tap, room-height, with concealed turn trap, with concealed Clou

4 Articles

Phasing out

Geberit Duofix

Geberit Duofix element for Geberit ONE washbasin, small projection and Geberit ONE wall-mounted tap, part-height, with concealed turn trap, with concealed Clou

4 Articles

Phasing out
