Geberit Piave washbasin tap, deck-mounted, mains operation, with exposed function box
My list (0)
Technical data
Protection degree IPX4 |
Nominal voltage 110–240 V AC |
Operating voltage 4.5 V DC |
Mains frequency 50–60 Hz |
Cable length 1 m |
Operating pressure 0.5–10 bar |
Recommended operating pressure with thermostatic mixer 0.5–5 bar |
Differentiated pressure CW/WW max. 1.5 bar |
Test pressure, water max. 16 bar |
Test pressure, air / inert gas max. 3 bar |
Ambient temperature 1–40 °C |
Storage temperature -20 – +70 °C |
Water temperature, adjustment range with thermostatic mixer 20–42 °C |
Operating temperature, water, short-term max. 90 °C |
Flow rate at 3 bar 5 l/min |
Minimum flow pressure 0.5 bar |
Interval flush time, factory setting 5 s |
Product material Brass / plastic |
Application purposes
Click on an application purpose to search more products
Characteristics
Click on a characteristic to search more products
Tap group I in accordance with DIN 4109Automatic flush actuationInfrared user detectionSelf-adjusting IR sensorVandal-resistantVolume flow control via tap aeratorTemperature presetting via mixer (only for models with mixer or thermostatic mixer)Not possible to set just hot water or just cold water (only for model with mixer or thermostatic mixer)Thermostat according to EN 1111 (only for model with thermostatic mixer)Scald protection by limiting the water temperature to 42 °C (only for models with thermostatic mixer)Thermal disinfection according to DVGW W 551 possiblePower supply via power supply unitEconomy mode can be set
Water saving due to quick-response two-beam scanning technologyFunctions can be set and queried with the Geberit Service HandyDevice settings and operation with mobile device via integrated Bluetooth® interfaceCompatible with Geberit Control AppWired networkable with Geberit gateway via GEBUS converterWirelessly connectable with Geberit Gateway via Bluetooth®Compatible with Geberit ConnectWater saver program can be setInterval flush program can be setContinuous flush can be set individuallyFlush actuation can be deactivatedWith integrated check valveFunctional unit with built-in basket filters
Scope of delivery
Washbasin tap with IR sensor and connection hose
Exposed function box with control electronics, functional unit and power supply unit
Reinforced braided hoses 3/8"

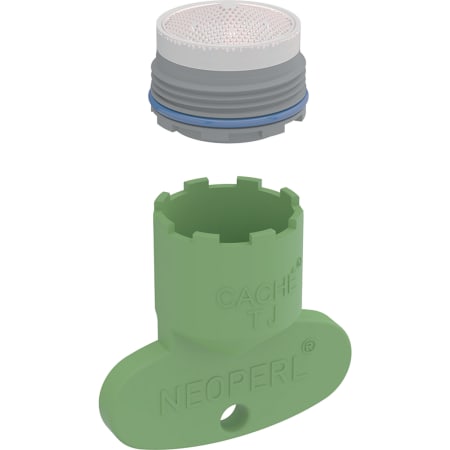

Tap aerator key
Fastening material
Geberit Control – The app for professional work on Geberit products in public spaces
Geberit Control offers users digital access to Geberit products for simple and efficient management of sanitary facilities by facility managers and plumbers. All functions in the app are free of charge.
Documents
Spare parts
Piave and Brenta washbasin taps, deck-mounted, with exposed function box
Piave and Brenta washbasin taps, deck-mounted, with exposed function box
2017 -
| # | Art. no. | Description | Replacement for | Remarks |
|---|---|---|---|---|
| 1 | 243.666.00.1 | Geberit fastening material for Piave and Brenta washbasin taps, deck-mounted | ||
| 2 | 243.667.14.1 | Geberit Piave washbasin tap, deck-mounted: black matt / easy-to-clean coated | ||
| 2 | 243.667.21.1 | Geberit Piave washbasin tap, deck-mounted: bright chrome-plated | ||
