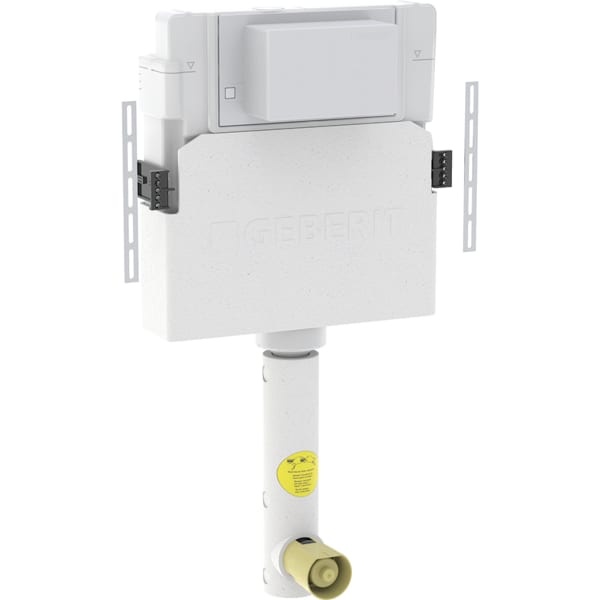

Geberit Alpha concealed cistern 12 cm, 6 / 3 litres, installation height 109 cm
My list (0)
Technical data
Flow pressure 0.1–10 bar |
Flush volume, factory setting 6 / 3 l |
Flush volume large, adjustment range 4 / 4.5 / 6 / 7.5 l |
Flush volume small, adjustment range 2–4 l |
Product material Plastic |
Application purposes
Click on an application purpose to search more products
Characteristics
Click on a characteristic to search more products
Scope of delivery
Water supply connection unit R 1/2", compatible with MasterFix and MeplaFix, with integrated angle stop valve and adapter ring
Protection box for service opening
Flush bend with recess shells
Flush bend extension, ø 45 mm
Protection plug
2 slotted flat irons
2 fixing brackets
Fastening material
Documents
Your input does not return any results
Spare parts
Alpha concealed cisterns 12 cm (from year of construction 2023)
Alpha concealed cisterns 12 cm (from year of construction 2023)
2023 -
| # | Art. no. | Description | Replaced by | Replacement for | Remarks |
|---|---|---|---|---|---|
| 1 | 245.418.00.1 | Geberit angle stop valve for Alpha concealed cisterns 12 cm | |||
| 1.2 | 241.857.00.1 | Geberit counternut made of plastic | |||
| 2 | 241.982.00.1 | Geberit reinforced braided hose | 241.463.00.1 | ||
21 Articles
| # | Art. no. | Description | Replaced by | Replacement for | Remarks |
|---|---|---|---|---|---|
| 1 | 242.414.00.1 | Geberit angle stop valve for Sigma concealed cistern 8 cm, Delta concealed cistern 12 cm, Alpha concealed cisterns 8/12 cm and Unica/UP700 concealed cisterns | |||
| 1.1 | 240.298.00.1 | Geberit spindle for angle valve with handwheel, left thread | |||
| 1.2 | 240.347.00.1 | Geberit hand wheel for angle stop valve | |||
33 Articles
