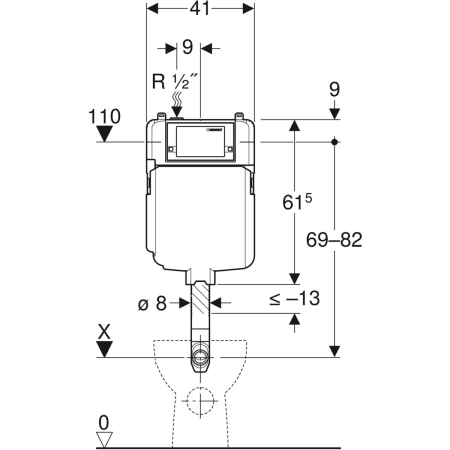

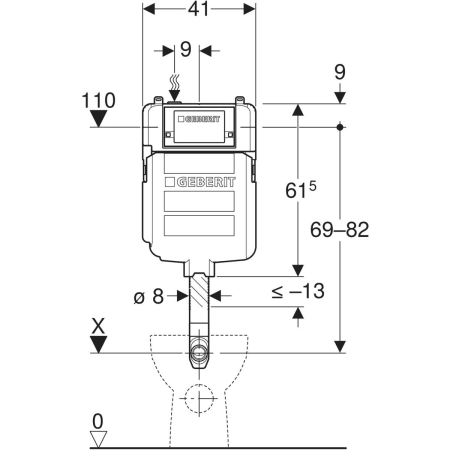

| Art. no. | 109.179.00.1 |
| B | 41 cm |
| H | 61.5 cm |

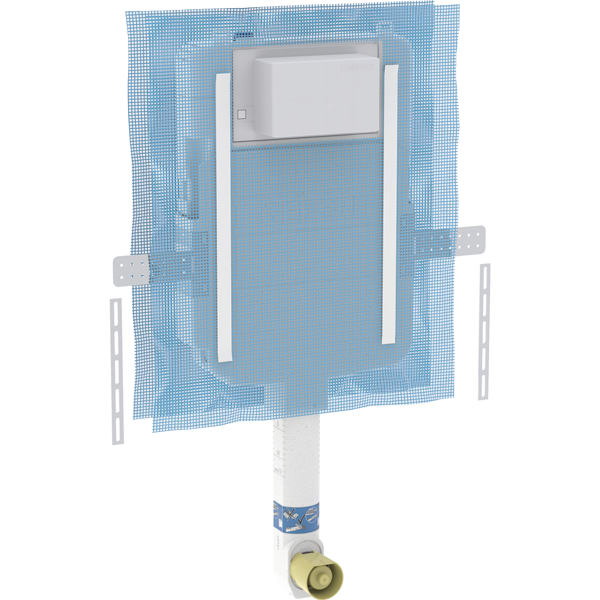

Geberit Alpha concealed cistern 8 cm, 6 / 3 litres
My list (0)
Technical data
Flow pressure 0.1–10 bar |
Water temperature max. 25 °C |
Flush volume, factory setting 6 / 3 l |
Full flush volume, adjustment range 4 / 4.5 / 6 / 7.5 l |
Flush volume small, adjustment range 2–4 l |
Product material Plastic |
Flow pressure 0.1–10 bar |
Water temperature max. 25 °C |
Flush volume, factory setting 6 / 3 l |
Full flush volume, adjustment range 4 / 4.5 / 6 / 7.5 l |
Flush volume small, adjustment range 2–4 l |
Product material Plastic |
Application purposes
Click on an application purpose to search more products
Characteristics
Click on a characteristic to search more products

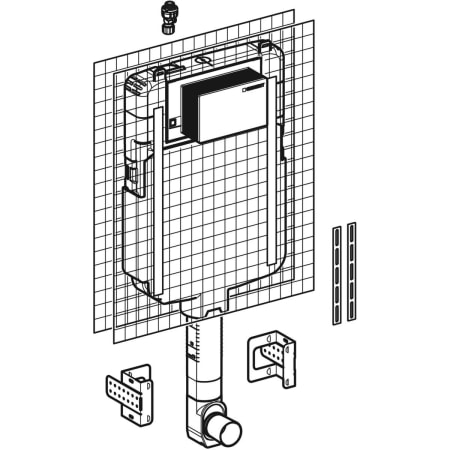

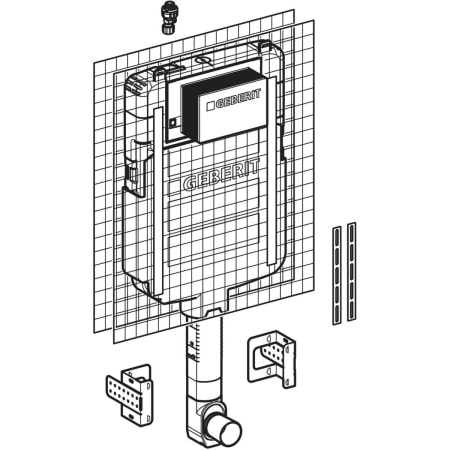

Scope of delivery
Water supply connection R 1/2", compatible with MasterFix and MeplaFix, with integrated angle stop valve and hand wheel
Protection box for service opening
Flush bend with recess shells
Flush bend extension, ø 45 mm
Protection plug
2 slotted flat irons
2 mounting shoes
Fastening material
Documents
| Document type | Documents | Language | |
|---|---|---|---|
Declaration of performance | DoP14 Cistern | EN and 30 others | |
Installation instructions | Alpha concealed cistern 8 cm | - | |
Maintenance manual | Alpha 8 cm concealed cistern | - | |
Maintenance manual | Alpha 8 cm concealed cistern (2023–) | - | |
Maintenance manual | Alpha 8 cm concealed cistern (2023–) | EN |
DoP14 Cistern
EN and 30 others
Alpha concealed cistern 8 cm
Alpha 8 cm concealed cistern
Alpha 8 cm concealed cistern (2023–)
Alpha 8 cm concealed cistern (2023–)
EN
Films
Other products
Spare parts
| # | Art. no. | Description | Replaced by | Replacement for | Remarks |
|---|---|---|---|---|---|
| 1 | 242.414.00.1 | Geberit angle stop valve for Sigma concealed cistern 8 cm, Delta concealed cistern 12 cm, Alpha concealed cisterns 8/12 cm and Unica/UP700 concealed cisterns: G=1/2″ | |||
| 1.1 | 240.298.00.1 | Geberit spindle for angle valve with handwheel, left thread | |||
| 1.2 | 240.347.00.1 | Geberit hand wheel for angle stop valve | |||
