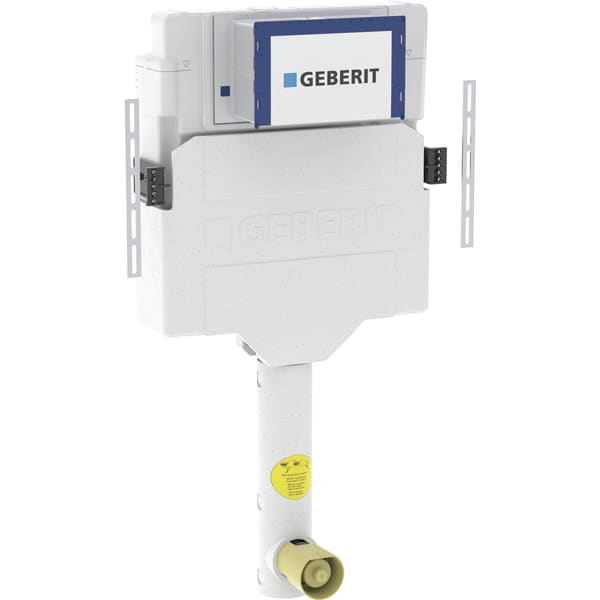

Geberit Sigma concealed cistern 12 cm, 6 / 3 litres
My list (0)
Technical data
Flow pressure 0.1–10 bar |
Flush volume, factory setting 6 / 3 l |
Flush volume large, adjustment range 4 / 4.5 / 6 / 7.5 l |
Flush volume small, adjustment range 2–4 l |
Product material Plastic |
Application purposes
Click on an application purpose to search more products
Characteristics
Click on a characteristic to search more products

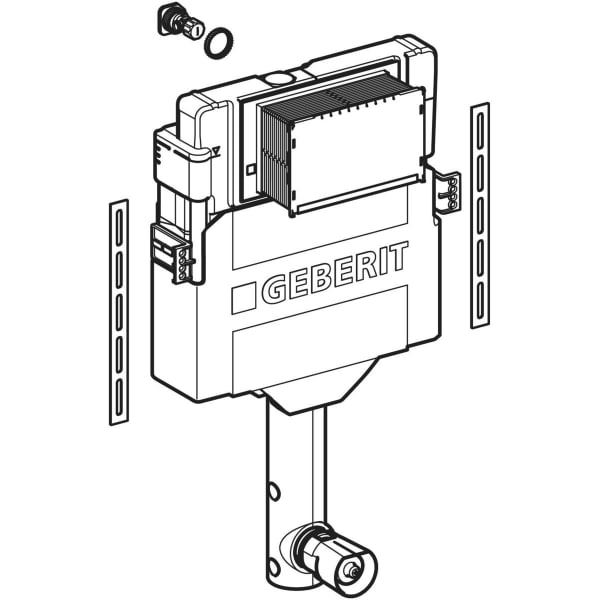

Scope of delivery
Water supply connection R 1/2", compatible with MasterFix and MeplaFix, with integrated angle stop valve and hand wheel
Protection box for service opening
Flush bend with recess shells
Protection plug
2 slotted flat irons
2 fixing brackets
Fastening material
Documents
Your input does not return any results
Spare parts
| # | Art. no. | Description | Replacement for | Remarks |
|---|---|---|---|---|
| 1 | 240.269.00.1 | Geberit water supply connection with integrated angle stop valve | 240.177.00.1 | |
| 1 | 240.847.00.1 | Geberit water supply connection with integrated angle stop valve, resistant to seawater | ||
| 1.1 | 240.298.00.1 | Geberit spindle for angle valve with handwheel, left thread | For use with hand wheel | |
