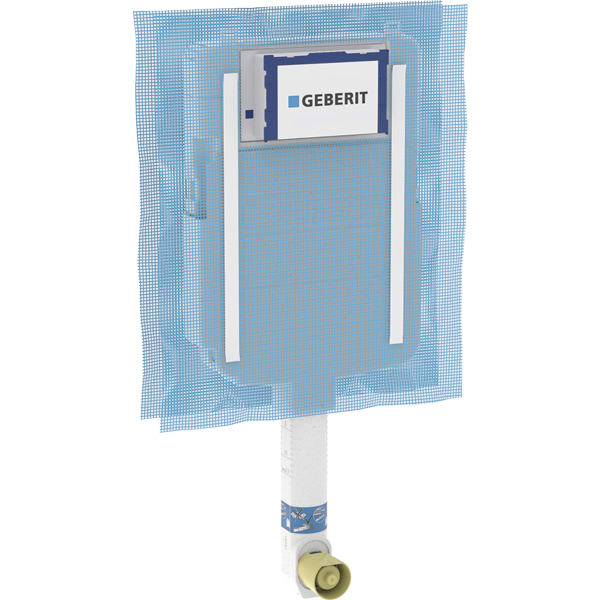

Geberit Sigma concealed cistern 8 cm, 6 / 3 litres
My list (0)
Technical data
Flow pressure 0.1–10 bar |
Flush volume, factory setting 6 / 3 l |
Flush volume large, adjustment range 4 / 4.5 / 6 / 7.5 l |
Flush volume small, adjustment range 2–4 l |
Product material Plastic |
Application purposes
Click on an application purpose to search more products
Characteristics
Click on a characteristic to search more products
Range 2016Concealed cistern with front actuationConcealed cistern, fully insulated against condensationPremounted direct plastering nettingImmediate post flush possible with factory settingFlush bend fitted
Flush bend adjustable 2 cm upwards and 1 cm downwardsTool-free installation and maintenance work on concealed cisternWater supply connection on the top leftWater supply connection, dezincification-resistantProtection cover box for service opening protects against moisture and dirtProtection box for service opening can be cut to length, suitable for surface-even actuator plates

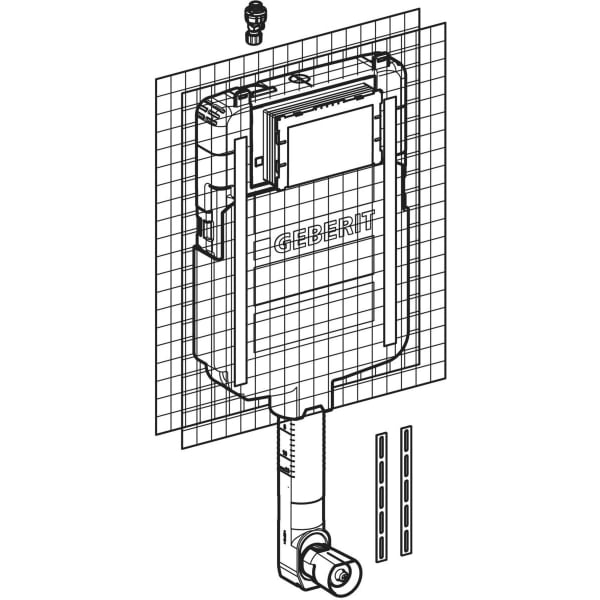

Scope of delivery
Water supply connection R 1/2", compatible with MasterFix and MeplaFix, with integrated angle stop valve and hand wheel
Protection box for service opening
Flush bend with recess shells
Flush bend extension, ø 45 mm
Protection plug
2 slotted flat irons
Fastening material
Documents
Your input does not return any results
Films
Spare parts
| # | Art. no. | Description |
|---|---|---|
| 1 | 242.414.00.1 | Geberit angle stop valve for Sigma concealed cistern 8 cm, Delta concealed cistern 12 cm, Alpha concealed cisterns 8/12 cm and Unica/UP700 concealed cisterns |
| 1.1 | 240.298.00.1 | Geberit spindle for angle valve with handwheel, left thread |
| 1.2 | 240.347.00.1 | Geberit hand wheel for angle stop valve |
