Washdown WCs for close-coupled exposed cistern

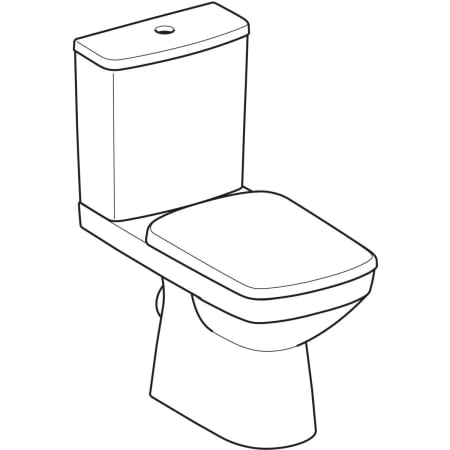

Geberit Selnova Square set of floor-standing WC with close-coupled exposed cistern, square, washdown, horizontal outlet, semi-shrouded, Rimfree, with WC seat

My list (0)

Articles

Click on the icon with the 3 dots to have more options for each item.

Art. no.
503.086.00.1
Colour / surface

white

B

37 cm

Technical data

Flush volume, factory setting

4 / 2.6 l

Full flush volume, adjustment range

4 / 6 l

Flush volume small, adjustment range

2.6 / 4 l

Product material

Sanitary ceramic

Fastening distance

15.5 cm

Application purposes

Click on an application purpose to search more products

For close-coupled installationFor water supply connections 1/2''For close-coupled exposed cistern

Characteristics

Click on a characteristic to search more products

Floor-standingFastening with screwWashdown WCRimless WC ceramic appliance featuring Rimfree flush technologyType 1, full flush volume 6 l, in accordance with EN 997Type 2 in accordance with EN 997Horizontal outletSemi-shrouded
Hidden fasteningSquare designWater supply connection on the bottomDual flushWC seat made of DuroplastOverlapping WC lidHinges made of metalAntibacterial

Scope of delivery

  • WC ceramic appliance

  • Exposed cistern, close-coupled

  • Mechanism

  • WC seat

  • Fastening material

Documents

Sanitary ceramic appliance

EN and 31 others

WC and bidet seats, urinal lids

EN and 31 others

DoP10 WCs

EN and 29 others

DoP10 WCs

EN

Ceramic appliance
Quick release
Fastening set for floor-standing ceramic pans
Flush valve settings
Type 240 flush valve
Type 323 fill valve
