Geberit Type 185 washbasin tap, battery operation
My list (0)
Technical data
Battery type CR-P2 (6 V) |
Protection degree IP44 |
Operating voltage 6 V DC |
Operating pressure 0.5–8 bar |
Differentiated pressure CW/WW max. 1.5 bar |
Test pressure, water max. 16 bar |
Test pressure, air / inert gas max. 3 bar |
Ambient temperature 1–40 °C |
Operating temperature, water, short-term max. 90 °C |
Flow rate at 3 bar 6 l/min |
Minimum flow pressure 0.5 bar |
Interval flush time, factory setting 3 s |
Product material Chrome-plated brass |
Application purposes
Click on an application purpose to search more products
Characteristics
Click on a characteristic to search more products
Tap group I in accordance with DIN 4109Automatic flush actuationInfrared user detectionSelf-adjusting IR sensorVandal-resistantVolume flow control via tap aeratorTemperature presetting via mixer (only for model with mixer)Not possible to set just hot water or just cold water (only for model with mixer)Power supply by batteryCan be refitted for mains operationBattery sufficient to activate the water flow 200000 timesWarning when the battery is low
Economy mode can be setWater saving due to quick-response two-beam scanning technologyFunctions can be set and queried with the Geberit Service HandyDevice settings and operation with mobile device via integrated Bluetooth® interfaceCompatible with Geberit Control AppWirelessly connectable with Geberit Gateway via Bluetooth®Compatible with Geberit ConnectWater saver program can be setInterval flush program can be setContinuous flush can be set individuallyFlush actuation can be deactivatedWith integrated check valve
Scope of delivery
Basket filter
Lithium battery, type CR-P2, 6 V
Tap aerator key
Fastening material
Geberit Control – The app for professional work on Geberit products in public spaces
Geberit Control offers users digital access to Geberit products for simple and efficient management of sanitary facilities by facility managers and plumbers. All functions in the app are free of charge.
Documents

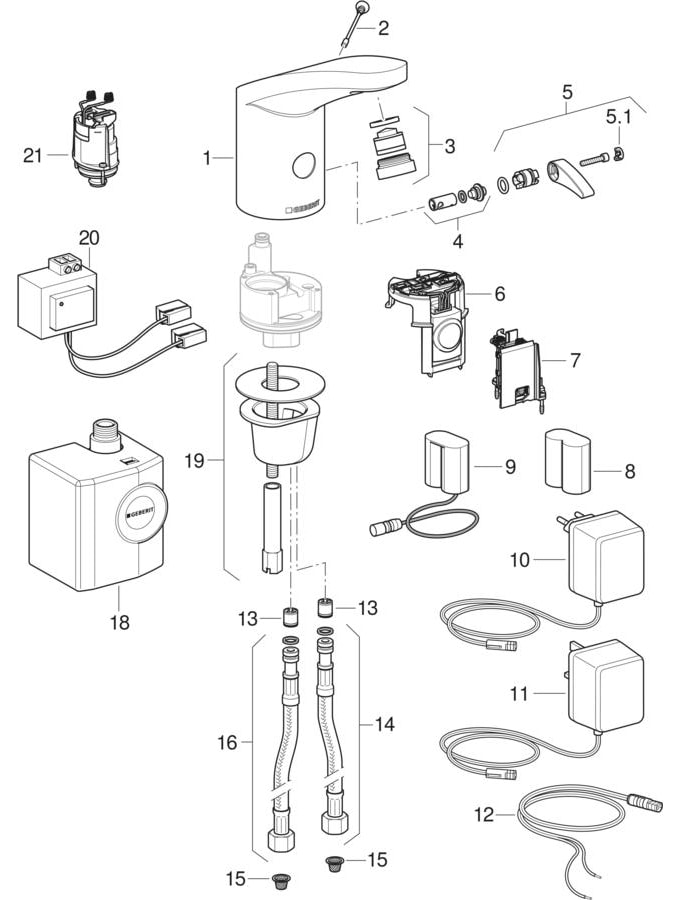

Spare parts
Washbasin taps type 185, mains / battery / generator operation
Washbasin taps type 185, mains / battery / generator operation
2009 -
| # | Art. no. | Description | Remarks |
|---|---|---|---|
| 1 | 242.243.00.1 | Geberit tap housing with opening, for Type 185 washbasin tap: bright chrome-plated | |
| 1 | 242.244.00.1 | Geberit tap housing without opening, for Type 185 washbasin tap: bright chrome-plated | |
| 2 | 240.753.00.1 | Geberit shut-off screw for washbasin taps Types 85, 86, 185 and 186 | |
