Fill valves for ceramic cisterns
Phasing out

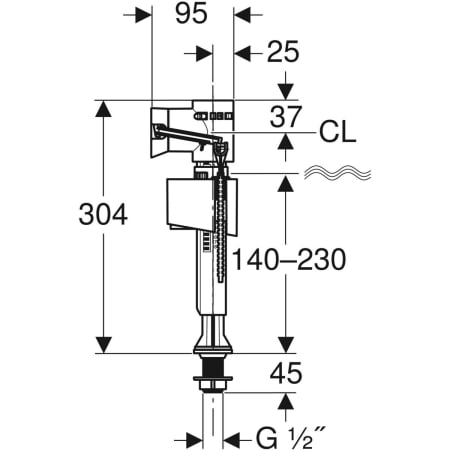

Geberit Type 340 fill valve, bottom water supply connection, 1/2", nipple made of plastic

My list (0)

Articles

Click on the icon with the 3 dots to have more options for each item.

Phasing out

Has been replaced by art. no. 136.752.00.1

Art. no.
136.726.00.1
B

6.3 cm

H

30.4 cm

Technical data

Flow pressure

0.1–10 bar

Appliance sound pressure level at 300 kPa / 3 bar

18 dB(A)

Appliance sound pressure level at 500 kPa / 5 bar

23 dB(A)

Storage temperature

≤ 40 °C

Water temperature max.

25 °C

Application purposes

Click on an application purpose to search more products

For Geberit exposed cisterns with bottom water supply connectionFor greywater and rainwater with pH value 5.5–9.5, if a filter system is usedFor ceramic cisternsFor potable water
For water supply connections 1/2''

Characteristics

Click on a characteristic to search more products

Adjustable filling heightWater supply connection on the bottomThreaded nipple made of plastic

Documents

Fill valve type 340
Fill valve type 340
Type 340 fill valve
